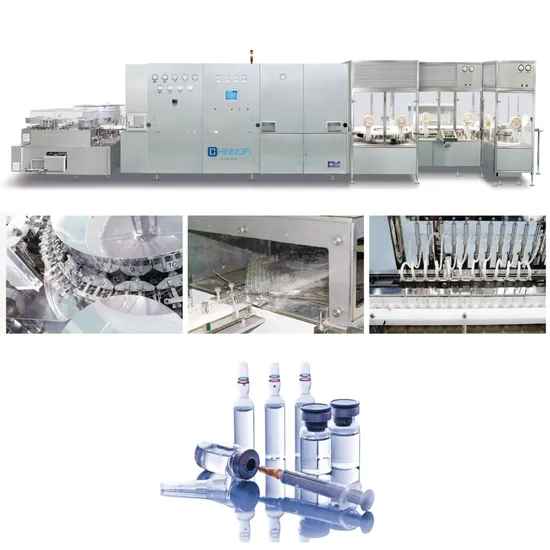

Integrated high-speed aseptic line for precise vial washing, sterilizing, filling, and capping, compliant with GMP standards.
The entire line is designed and manufactured in strict accordance with 2020 GMP requirements to ensure product sterility and quality.
Features advanced ultrasonic cleaning, alternating water/vapor flushing, and hot air laminar flow sterilization for superior vial preparation.
Employs high-precision multi-head piston pumps for accurate liquid dispensing, suitable for vial sizes from 2ml to 100ml.
A fully automated, integrated system reduces human intervention, minimizing cross-contamination risk in cleanroom environments.
Modular design allows for flexible configuration and can be customized based on specific production capacity and facility layouts.
Constructed with 316L stainless steel for all contact parts and 304 stainless steel for the exterior, ensuring durability and compliance.
Applicable Vial Size: 2-20ml (Model SXXGF2/20-A)
Production Capacity: 4,000-18,000 vials per hour
Total Power Consumption: 73KW (Normal operating power: 47KW)
Overall Dimensions (LxWxH): 9200mm x 2610mm x 2360mm
Net Weight: 7600 kg
Control System: PLC with programmable human-machine interface (HMI) for seamless operation and monitoring.
