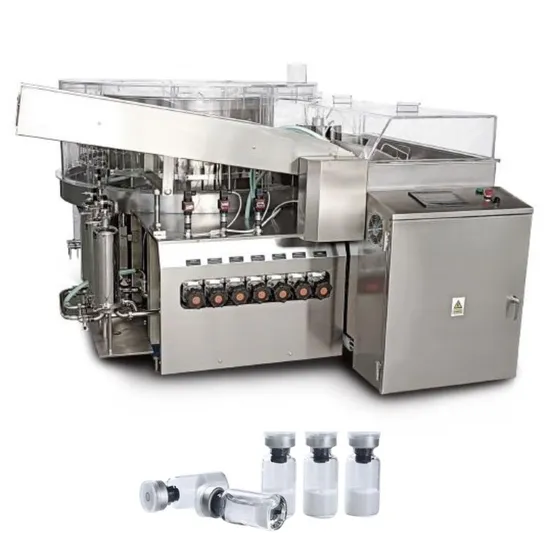

High-efficiency ultrasonic vial washing machine designed for cleaning 2-100ml ampoules and vials in aseptic pharmaceutical filling lines.

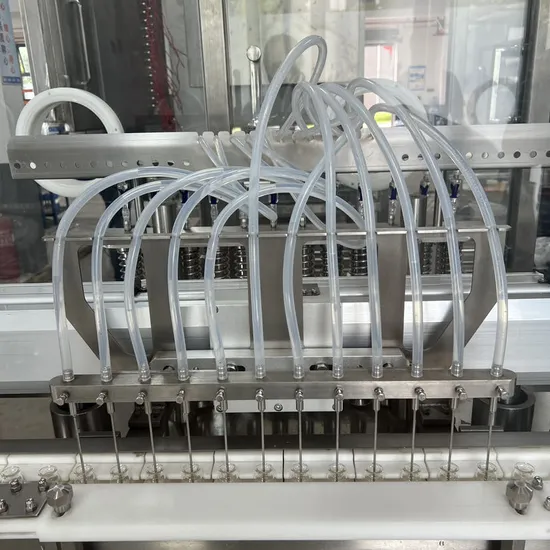

Utilizes advanced ultrasonic cleaning and a multi-stage water/air jet flushing process for superior vial cleaning and drying performance in compliance with GMP standards.

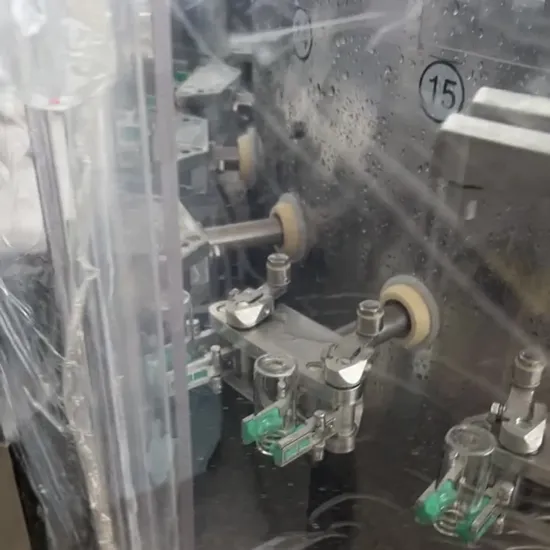

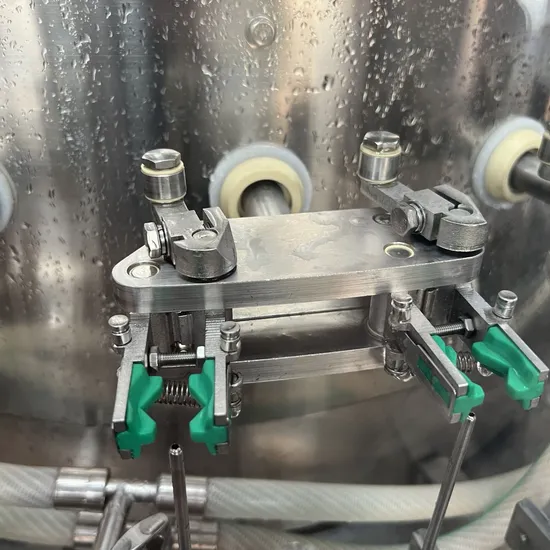

Features a precise mechanical manipulator and guide rail system for stable, reliable, and damage-free transfer of vials.
Employs a combination of ultrasonic rough washing, recycled water, purified water, and WFI tracking cleaning to eliminate cross-contamination.
Seamlessly integrates with high-temperature sterilization ovens via a synchronous belt for a continuous and automated aseptic production line.
Constructed with 316L stainless steel for all liquid contact parts and 304 stainless steel for external components, ensuring durability and regulatory compliance.
Applicable Specification: 2-100ml Ampoule bottle or vial
Production Capacity: 6,000-12,000 bottles/hour
Water Consumption: 0.4 m³/h at 0.2-0.3MPa
Air Consumption: 40 m³/h at 0.3MPa
Power Supply: 380V 50Hz, 12.6KW
Overall Dimensions (LxWxH): 2070mm x 2200mm x 1300mm
